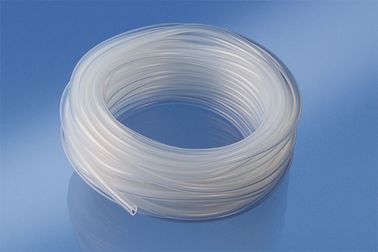

Silicone Tube / Hose – BIS

Silicone tubing -BIS ( British Imperial System )

  • Fits Over Threaded Studs, Dowels, Pins and Tubing
  • Conforms to Irregular Geometries
  • Cut to Size



Product Description:

Our Silicone Tubing (ST) product line is ideal for masking off irregular geometries, long protrusions or as a substitute for short runs. The versatile nature of the tubing allows it to fit over extrusions, threaded studs, PEMS and dowels, as well as be used as a plug for tapped holes, irregular contours and threaded holes. Our high temperature silicone is specially formulated to ensure reusability and economy during masking.





Typical Applications:

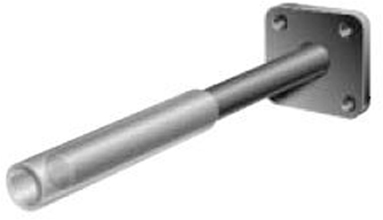

  • Used as a sleeve over threaded studs, dowels, and protrusions.
  • Used as a flexible mask for round channels and cut outs.





ZG-Schlauch



All Dimension in mm

Get a sample or offer

Part No. ID (mm) OD (mm) Roll Length Meter
ST-0040 1,016 4,191 30,48
ST-0056 1,4224 4,5974 30,48
ST-0062 1,5748 4,7498 30,48
ST-0068 1,7272 4,9022 30,48
ST-0080 2,032 5,207 30,48
ST-0093 2,3622 5,5372 30,48
ST-0109 2,7686 5,9436 30,48
ST-0125 3,175 6,35 30,48
ST-0140 3,556 6,731 30,48
ST-0156 3,9624 7,1374 30,48
ST-0172 4,3688 7,5438 30,48
ST-0187 4,7498 7,9248 30,48
ST-0203 5,1562 8,3312 30,48
ST-0218 5,5372 8,7122 30,48
ST-0234 5,9436 9,1186 30,48
ST-0250 6,35 9,525 30,48
ST-0281 7,1374 10,3124 15,24
ST-0312 7,9248 11,0998 15,24
ST-0343 8,7122 11,8872 15,24
ST-0375 9,525 12,7 15,24
ST-0406 10,3124 13,4874 15,24
ST-0437 11,0998 14,2748 15,24
ST-0500 12,7 15,875 15,24
ST-0625 15,875 19,05 15,24
ST-0750 19,05 22,225 15,24
ST-0875 22,225 25,4 15,24
ST-0937 23,7998 26,9748 15,24
ST-1000 25,4 28,575 15,24
ST-1125 28,575 31,75 7,62
ST-1250 31,75 34,925 7,62
ST-1375 34,925 38,1 7,62
ST-1500 38,1 41,275 7,62
ST-1625 41,275 44,45 7,62
ST-1750 44,45 47,625 7,62
ST-1875 47,625 50,8 7,62
ST-2000 50,8 53,975 7,62
