Vinyl Caps

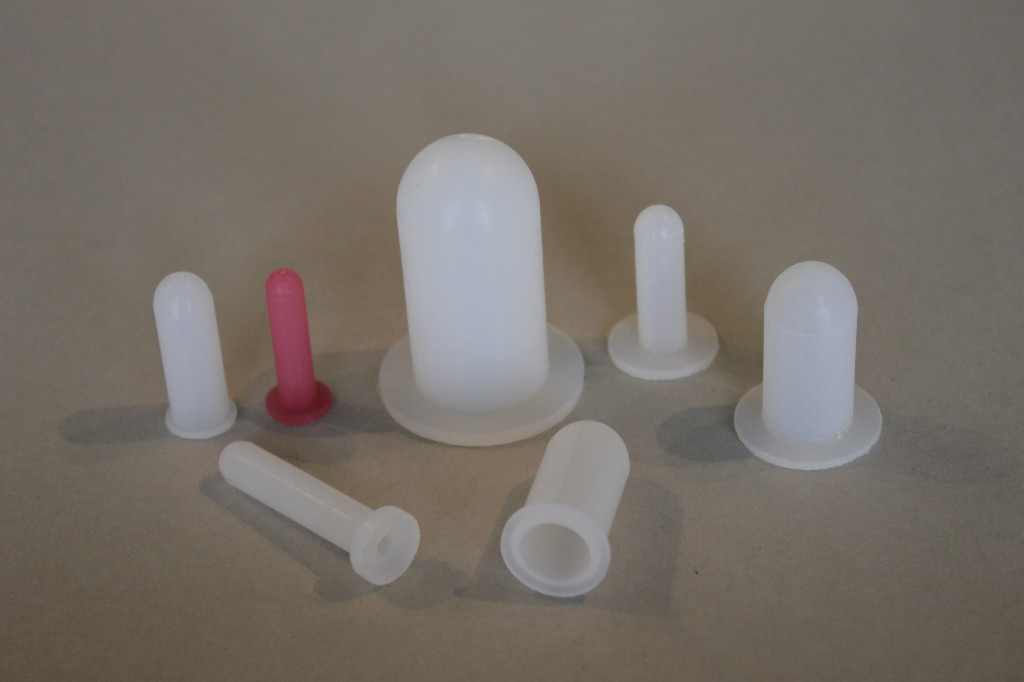

Vinyl Dip Moulding Caps / PVC Tauchkappen

PVC/ w  Hardness: about. 65°, 70° or 85° Shore A

Standard Color: yellow, blue, gray, white, red, green, black. Other colors on request.

Usual tolerances: internal length of 1,5 – 2 mm – wall thickness of + / – 0.3 mm





100% Phthalate Free

Our material is available in black, yellow, red and green fluorescent standard phthalate-free .  All individual ingredients is FDA confirm.



Immersion lengths in mm increments possible.

ZG_PVC Kappen-Rund



For requesting and samples please give  your desired length.

Get a sample or offer

Part No. A ID (mm) Metric Length min. Length max.
PVCK00101 1,5 10 20
PVCK00102 1,8 10 20
PVCK00103 2 10 20
PVCK00104 2,5 10 27
PVCK00105 3 M3 10 20
PVCK00106 3,5 M4 10 55
PVCK00107 4 10 27
PVCK00108 4,5 10 55
PVCK00109 5 M5 10 65
PVCK00110 5,5 10 100
PVCK00111 6 M6 10 90
PVCK00112 6,4 10 125
PVCK00113 6,5 10 45
PVCK00114 7 10 95
PVCK00115 7,5 M8 10 60
PVCK00116 8 10 120
PVCK00117 8,5 10 50
PVCK00118 8,7 10 120
PVCK00119 9 10 115
PVCK00120 9,5 M10, 7/18" 10 50
PVCK00121 10 10 113
PVCK00122 11 M12, 7/16" 10 45
PVCK00123 12 10 115
PVCK00124 13 M14, 1/4" 10 50
PVCK00125 15 10 105
PVCK00126 14 10 108
PVCK00127 15 10 140
PVCK00128 16 M16, 3/8" 10 145
PVCK00129 17 10 55
PVCK00130 18 10 195
PVCK00131 19 M20, 1/2" 10 145
PVCK00132 20 10 130
PVCK00133 21 10 135
PVCK00134 21,9 10 145
PVCK00135 22 M22, 5/8" 10 65
PVCK00136 23 10 50
PVCK00137 24 M24 10 160
PVCK00138 25 3/8" 10 175
PVCK00139 26 10 140
PVCK00140 27 M30 10 185
PVCK00141 29,2 10 140
PVCK00142 30 7/8" 10 155
PVCK00143 31 10 155
PVCK00144 32 1" 10 185
PVCK00145 33 10 185
PVCK00146 34 10 90
PVCK00147 35 M35, 1 3/8" 10 135
PVCK00148 38 M39, 1 1/2" 10 180
PVCK00149 39 10 170
PVCK00150 40 M42, 1 1/4" 10 100
PVCK00151 42 10 75
PVCK00152 45 10 65
PVCK00153 48 10 170
PVCK00154 48 10 130
PVCK00155 50 2" 10 60
PVCK00156 50 10 105
PVCK00157 51 10 170
PVCK00158 52 10 205
PVCK00159 53 10 80
PVCK00160 55 10 45
PVCK00161 58 10 115
PVCK00162 60 10 95
PVCK00163 62 2 1/2" 10 58
PVCK00164 64 10 92
PVCK00165 65 10 210
PVCK00166 68 10 58
PVCK00167 70 10 90
PVCK00168 72 10 60
PVCK00169 76 3" 10 95
PVCK00170 78 10 70
PVCK00171 80 10 40
PVCK00172 82,5 10 88
PVCK00173 8 10 90
PVCK00174 87 10 95
PVCK00175 90 10 155
PVCK00176 95 10 155
PVCK00177 100 10 155
PVCK00178 105 10 155
