Flanged Caps – CP

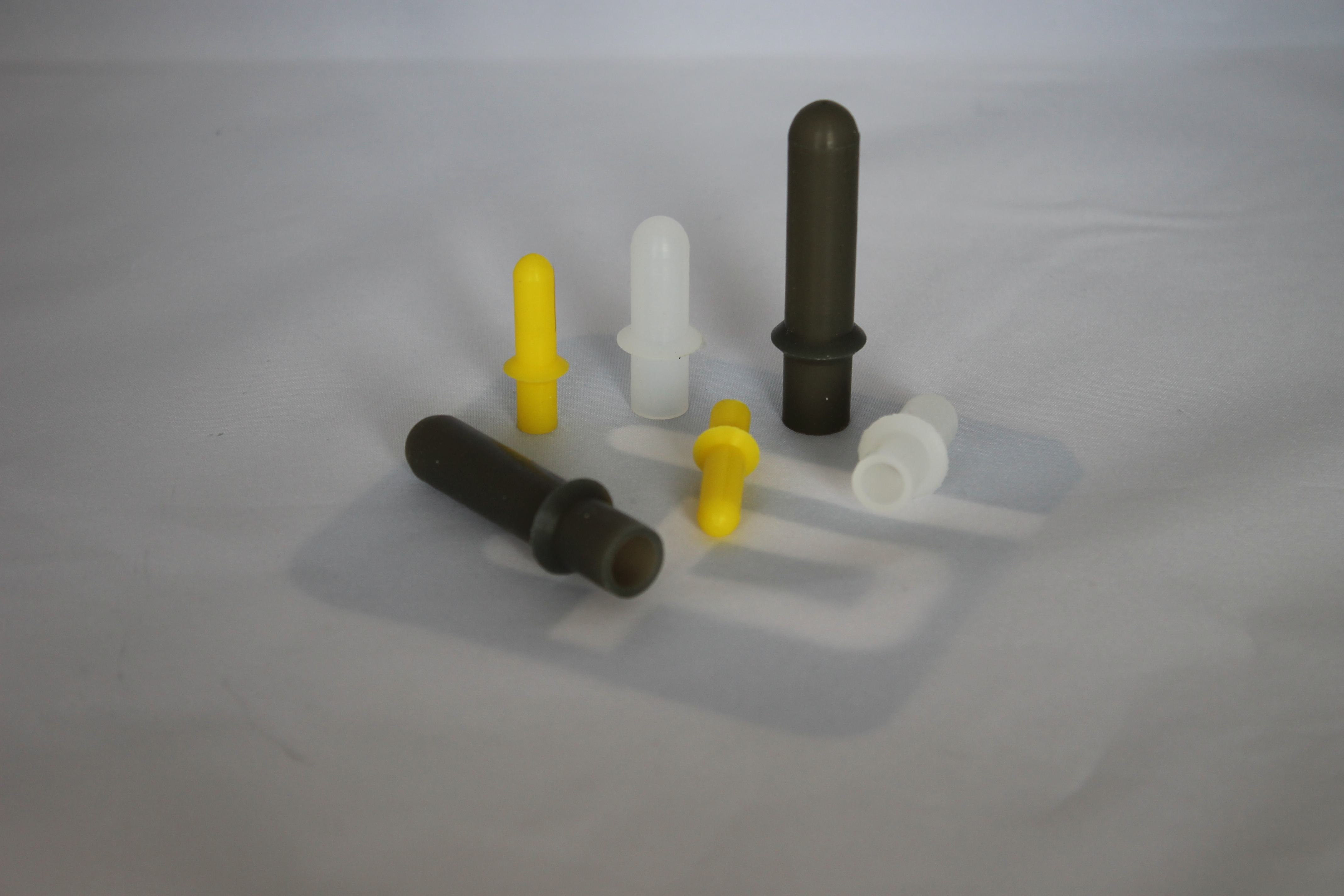

Kappe mit Flansch / Flanged Caps – CP Series

Material:   Silicone Ruber (SCP) or  EPDM (ECP)

  • Flanged Washer Area is Ideal for Masking Around Lead-In Chamber of Threaded Holes.
  • Hollow Design Ensures Easy Insertion
  • Can be Used in Conjunction with a Dowel or Other Insertion Tool for Easier Application
  • Flanged Caps are Reusable, and Will Not Melt or Harden.
  • Powder Coating, E-Coating, Plating and Anodizing.



Typical Applications:

Used as a plug in threaded holes, and chamfered holes. Can also be used as a substitute for an equivalent silicone cap.

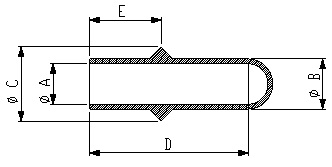

ZG-CP Kappen



All Dimension in  mm



Get a sample or offer

Part No. Color A B C D E PCS/BAG
CP-M8 Yellow 4,39 7,39 11,99 30,99 11,99 250
CP-M10 Pink 5,69 8,71 14,71 32 13 250
CP-M12 Clear 7,65 10,69 15,8 33,02 14 250
CP-M12L Clear 8 10,69 15,8 45,66 14 250
CP-M14 Gray 10,69 13,69 18,01 34,04 15,01 250
CP-M14L Clear 9,55 12,7 17,53 57,15 17,02 250
