Flangeless Plug -FP

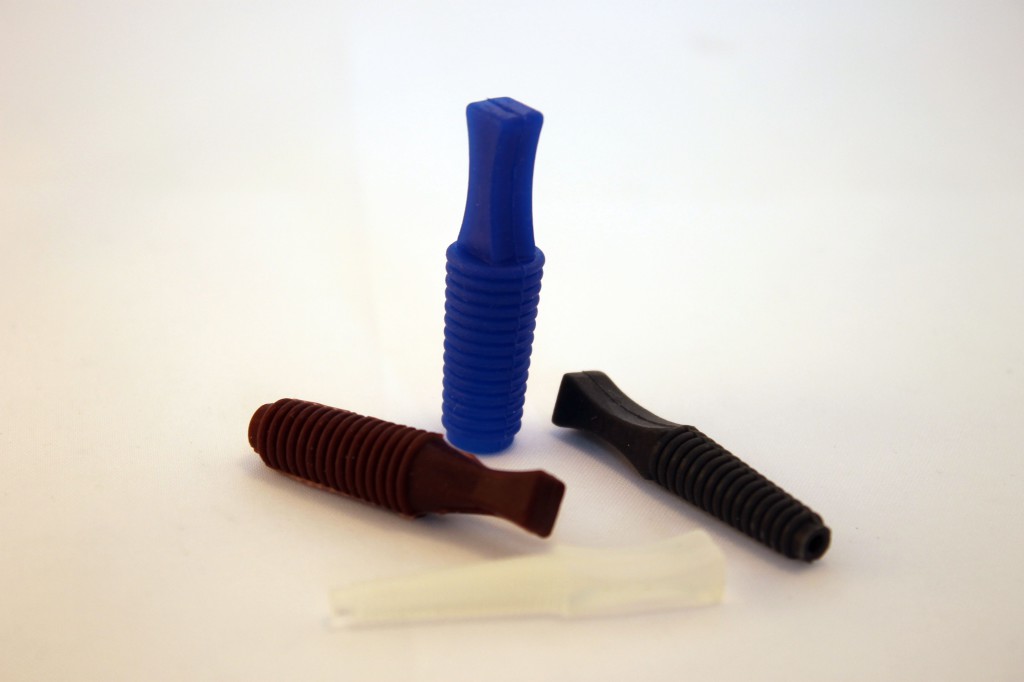

Flanschlose Stopfen   / Flangeless Plug   – FP-Series

Material Silicone  (316°C ) = SFP  & EPDM ( 177°C) = EFP

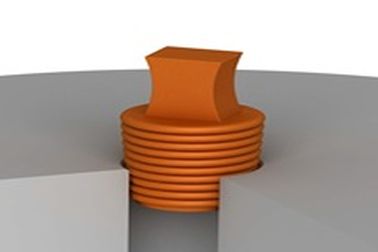

Flangeless Plug (SFP or EFP) product line is specifically designed to mask threaded holes, including the top thread, without masking the surrounding area. The tapered ribs and hollow core allow for many different size holes to be masked, regardless of the thread pitch. Imitation plugs have rounded ribs that do not offer the same degree of protection as Elfeplastic line. Made of a rugged blend of our High Temperature Silicone the SFP has excellent sealing characteristics and reusability.Tapered ribs and hollow core allow for masking of multiple sizes of holes. Sharp rib profile offers excellent chamfer coverage. Specially Formulated to be rigid. Allowing plug to be pushed into place.

Typical Applications:

  • Used as a plug for threaded holes, including the top thread.

Helpful Hints:

  • Silicone Flangeless Plugs are designed to be inserted via direct pressure. Elfeplastic does not recommend threading these plugs into place, as threading may cause damage to the plug and difficulty during removal.
  • Due to the low tear resistance of Silicone, do not use tools (such as pliers) to remove plugs.



ZG-FP-Stopfen

All dinension in mm

Get a sample or offer

Part No. NEW 2014 A (mm) B ( mm) C (mm) Shore A PCS/BAG
FP-0157-0079 3,99 2,01 19,05 50 500
FP-0236-0157 5,99 3,99 25,4 80 250
FP-0315-0236 8 5,99 25,4 80 250
FP-0394-0315 10,01 8 25,4 80 250
FP-0406-0313 10,31 7,95 25,4 75 250
FP-0468-0406 11,89 10,31 25,4 75 250
FP-0472-0394 11,99 10,01 25,4 75 250
FP-0551-0472 14 11,99 25,4 75 250
FP-0562-0468 14,27 11,89 25,4 75 250
FP-0625-0562 15,88 14,27 25,4 75 250
FP-0630-0551 16 14 25,4 75 250
FP-0709-0630 18,01 16 25,4 75 250
FP-0718-0625 18,24 15,88 25,4 75 250
FP-0750-0718 19,05 18,24 25,4 70 250
FP-0787-0709 19,99 18,01 25,4 70 100
FP-0875-0750 22,23 19,05 25,4 70 100
FP-0886-0787 22,5 19,99 25,4 70 100
FP-0945-0886 24 22,5 25,4 70 100
FP-1000-0875 25,4 22,23 25,4 65 100
FP-1024-0945 26,01 24 25,4 65 100
FP-1102-1024 27,99 26,01 25,4 65 100
FP-1125-1000 28,58 25,4 25,4 65 100
FP-1250-1125 31,75 28,58 25,4 65 100
FP-0415-0188 NEW 10,54 4,78 25,4 70 1000
FP-0641-0415 NEW 16,28 10,54 25,4 70 500
FP-0868-0641 NEW 22,05 16,28 25,4 70 100
FP-1094-0868 NEW 27,79 22,05 25,4 70 100
FP-1320-1094 NEW 33,53 27,79 25,4 70 100
FP-1547-1320 NEW 39,29 33,53 25,4 70 100
FP-1774-1547 NEW 45,06 39,29 25,4 70 100
FP-2000-1774 NEW 50,8 45,06 25,4 70 100
