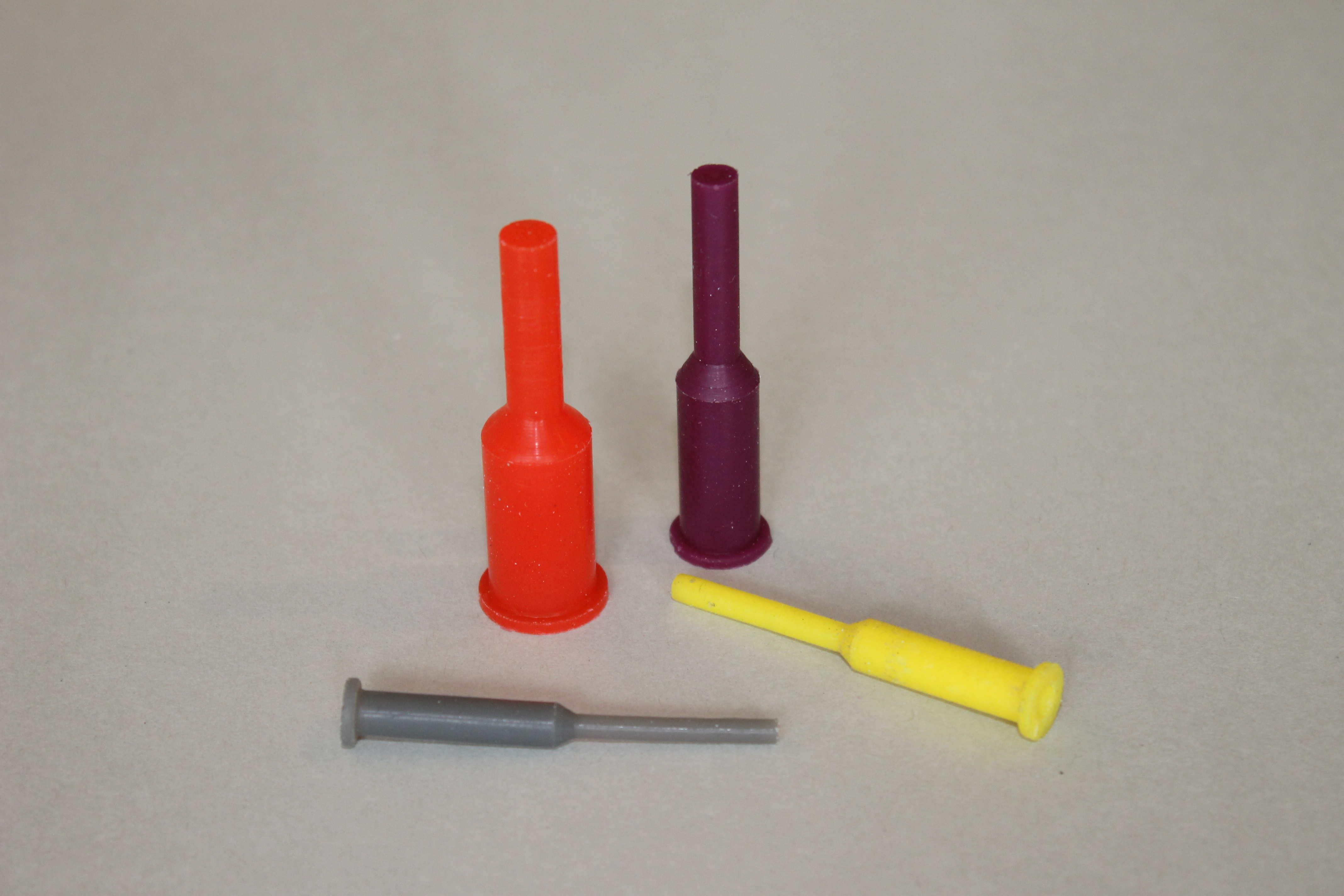

Silicone Flange Pull Plug- SFPP

Silicone Flange Pull Plug / Flansch – Zugstopfen SFPP-Serie

Material: Silicone Rubber  (316 ° C)

Hardness: 40 ° – 45 ° Shore A

The flange–pulling plug (also called by many floating plug) is designed so that it is flush threaded inserts clean by a train.
Very good chemical and acid resistance, to be used several times without
that the material hardens. Also available in other color coding.

Tips: Take the diameter B 10% larger than your hole diameter.

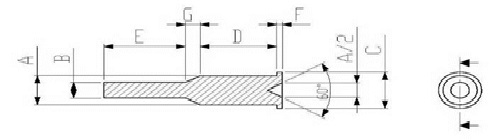

22.ZG-Flansch_Zugstopfen_SFPP



All Dimension in mm

Get a sample or offer

Part No. Color Metric A B C D E F G Shore A PCS/BAG
SFPP-0170 CLEAR 4,32 3,05 7,62 25,4 25,4 1,52 0,64 40-45 500
SFPP-0173 RED M5 4,39 2,49 6,35 25,4 25,4 1,52 0,64 40-45 500
SFPP-0210 WHITE 5,33 3,3 9,14 12,7 12,7 1,02 1,02 40-45 500
SFPP-0218 BLUE M6 5,54 3,18 8,64 25,4 26,19 1,78 1,73 40-45 500
SFPP-0230 GREY 5,84 3,18 8,89 25,4 26,19 1,78 2,51 40-45 500
SFPP-0285 YELLOW M8 7,24 4,06 10,16 25,4 26,97 1,78 2,49 40-45 500
SFPP-0335 ORANGE 8,51 4,06 11,68 25,4 26,19 1,78 3,25 40-45 500
SFPP-0350 PINK M10 8,89 4,75 12,01 25,4 26,97 1,78 3,76 40-45 500
SFPP-0420 GREEN 10,67 5,97 13,72 25,4 26,97 1,78 4,27 40-45 250
SFPP-0445 PURPLE M12 11,3 6,1 14,22 25,4 26,97 1,78 4,83 40-45 250
SFPP-0490 WHITE 12,45 6,48 15,49 25,4 25,4 1,98 3 40-45 250
SFPP-0545 RUSTY M14 13,85 6,99 16,85 25,4 25,4 1,8 3,5 40-45 250
SFPP-0580 RED 14,73 7,49 17,78 25,4 25,4 1,8 3,61 40-45 250
