EPDM Cone Plugs -ETP

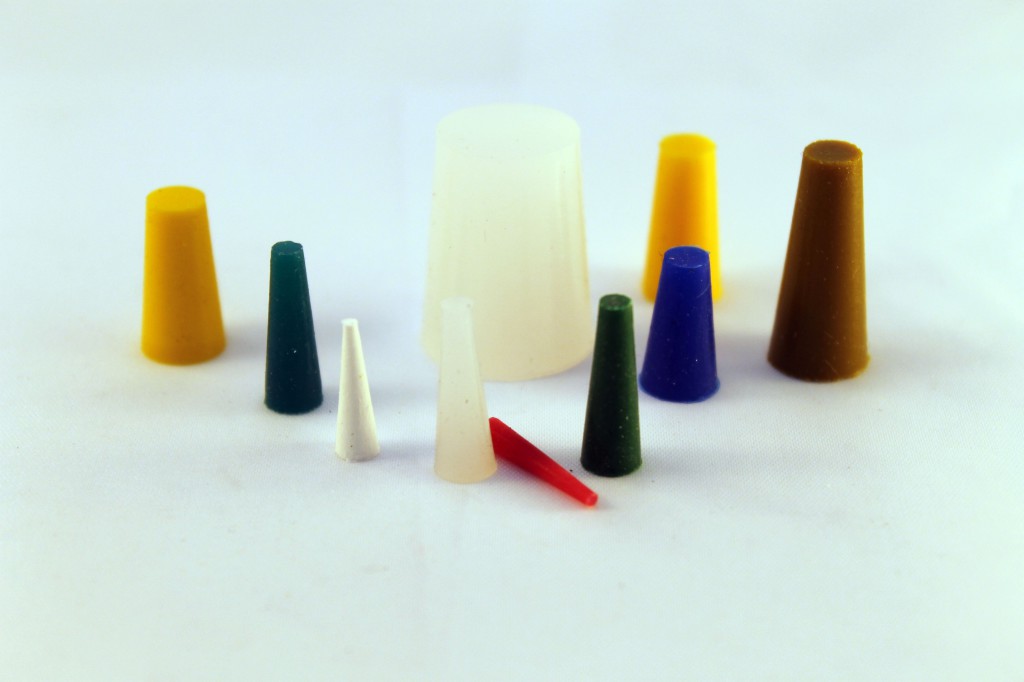

Konische Stopfen  EPDM /  EPDM Cone PlugsTEP-Serie

We can delivery following materials:

  • Silicone Rubber        = STP-xxxx-xxxx
  • EPDM                         = ETP-xxxx-xxxx
  • Neopren                      = NTP-xxxx-xxxx



  • Tapered to fit a variety of hole diameters
  • Compressible for better sealling of both threaded and non-threaded holes
  • Ideal for sand blasting
  • excellent chemical and hydrocarbon resistance







Typical Applications:

Used as a plug in both threaded and non-threaded holes and in combination with hardware to seal off large cavities.

Helpful Hints:

  • Make sure that the major diameter of the plug is at least 15% larger than the hole diameter. The minor diameter should be at least 15% smaller than the hole diameter.
  • EPDM Cone Plugs  are not recommended for prolonged exposure to intense heat.

Product Description:

Our Black EPDM Cone Plug  (ETP) product line is an economical substitute for our STP product line for general plugging applications. With many sizes available, holes from 1,60 mm to 88,4 mm in diameter can easily be plugged. Our high temperature EPDM is specially formulated to resist chemical attack and ensure reusability and economy during masking.

All dimension in mm ZG-Konischer Stopfen STP



Standard color is black

Get a sample or offer

Part No. Metric / UNF Material A (mm) B (mm) L (mm) PCS/BAG
ETP-0063-0625 EPDM 1,6 0,41 15,88 1000
ETP-0078-0750 M2 EPDM 1,98 0,51 19,05 1000
ETP-0078-1000 M2 EPDM 1,98 0,51 25,4 1000
ETP-0100-0625 EPDM 2,54 0,81 15,88 1000
ETP-0100-1000 EPDM 2,54 0,81 25,4 1000
ETP-0125 M3 EPDM 3,18 0,79 15,88 1000
ETP-0125-0625 M3 EPDM 3,18 1,6 15,88 1000
ETP-0146-0276 EPDM 3,7 3,4 7 1000
ETP-0177-0591 EPDM 4,5 1,5 15,01 1000
ETP-0187-0394 M3, M4 EPDM 4,75 2,79 10,01 1000
ETP-0187-0625 M3, M4 EPDM 4,75 1,6 15,88 1000
ETP-0187-0750 M3, M4 EPDM 4,75 1,6 19,05 1000
ETP-0187-1000 M3, M4 EPDM 4,75 1,6 25,4 1000
ETP-0188-2200 M4 EPDM 4,78 1,19 55,88 1000
ETP-0197-1100 EPDM 5 1,19 27,89 1000
ETP-0200-0750 EPDM 5,08 1,6 19,05 1000
ETP-0216-1500 M3,M4,M5 EPDM 5,49 1,19 38,1 1000
ETP-0218-0250 EPDM 5,54 4,7 6,35 1000
ETP-0250-0750 M5,M6, 1/4" EPDM 6,35 3,18 19,05 1000
ETP-0250-1000 M5,M6, 1/4" EPDM 6,35 3,18 25,4 1000
ETP-0276-0630 EPDM 7 5 16 1000
ETP-0276-0787 EPDM 7 3 19,99 1000
ETP-0276-0984 EPDM 7,01 2,2 24,99 1000
ETP-0279-0984 EPDM 7,09 0,41 24,99 1000
ETP-0315-0787 EPDM 8 3,99 19,99 1000
ETP-0343-0625 M7, M8, 5/8" EPDM 8,71 4,78 15,88 1000
ETP-0343-0750 M7, M8, 5/8" EPDM 8,71 4,78 19,05 1000
ETP-0343-1000 M7, M8, 5/8" EPDM 8,71 4,78 25,4 1000
ETP-0354-0984 EPDM 8,99 4,5 24,99 1000
ETP-0375-0500 M8, 5/8" EPDM 9,53 6,35 12,7 500
ETP-0375-0750 M8, 5/8" EPDM 9,53 6,35 19,05 500
ETP-0375-1000 M8, 5/8" EPDM 9,53 6,35 25,4 500
ETP-0375-1250 M8, 5/8" EPDM 9,53 3,18 31,75 500
ETP-0393-0787 EPDM 9,98 6 19,99 500
ETP-0394-1000 EPDM 10 5 25,4 500
ETP-0394-1969 EPDM 10 4 50 250
ETP-0394-1890 EPDM 10,01 5 48,01 500
ETP-0395-1969 EPDM 10,03 5 50,01 500
ETP-0433-0748 M10, 3/8" EPDM 11 8 19 500
ETP-0433-1063 M10, 3/8" EPDM 11 8 27 500
ETP-0437-1000 M10, 3/8" EPDM 11,1 6,35 25,4 500
ETP-0438-0688 M10, 3/8" EPDM 11,13 8,74 17,48 500
ETP-0438-0748 M10, 3/8" EPDM 11,13 8,99 19 500
ETP-0469-0813 M10, 3/8" EPDM 11,91 8,74 20,65 500
ETP-0472-0748 M10, 3/8" EPDM 11,99 8,99 19 500
ETP-0472-1000 M10, 3/8" EPDM 11,99 8,99 25,4 500
ETP-0472-2000 M10, 3/8" EPDM 11,99 6,02 50,8 500
ETP-0473-0787 M10, 3/8" EPDM 12,01 7,9 19,99 500
ETP-0487-0748 M10, 3/8" EPDM 12,37 8,99 19 500
ETP-0492-0787 M10, 3/8" EPDM 12,5 10 20 500
ETP-0500-0813 M10, 3/8" EPDM 12,7 7,92 20,65 250
ETP-0500-1000 M10, 3/8" EPDM 12,7 7,9 25,4 250
ETP-0500-2000 M10, 3/8" EPDM 12,7 3,2 50,8 250
ETP-0512-0984 EPDM 13 8,99 24,99 250
ETP-0512-1125 EPDM 13 7,95 28,58 250
ETP-0562-1000 M10,M12,M14 7/16",1/2",9/16" EPDM 14,27 7,95 25,4 250
ETP-0562-1125 M10,M12,M14 7/16",1/2",9/16" EPDM 14,27 7,95 28,58 250
ETP-0563-1000 M10,M12,M14 7/16",1/2",9/16" EPDM 14,3 9,53 25,4 250
ETP-0590-1000 EPDM 14,99 9,98 25,4 250
ETP-0591-0787 M14, M16 1/2",9/16" EPDM 15,01 11 19,99 250
ETP-0594-1000 EPDM 15,09 10,31 25,4 250
ETP-0625-0813 M14, M16 9/16",5/8" EPDM 15,88 11,1 20,65 250
ETP-0625-0875 M14, M16 9/16",5/8" EPDM 15,88 11,13 22,23 250
ETP-0625-1000 M14, M16 9/16",5/8" EPDM 15,88 12,7 25,4 250
ETP-0656-1000 M16, 5/8 EPDM 16,66 12,7 25,4 250
ETP-0669-1000 EPDM 16,99 13 25,4 250
ETP-0687-0787 M14, M16, M18 5/8" EPDM 17,45 14 19,99 250
ETP-0687-1000 M14, M16, M18 5/8" EPDM 17,45 11,13 25,4 250
ETP-0689-1000 M14, M16, M18 5/8" EPDM 17,5 10,7 25,4 250
ETP-0709-0787 EPDM 18,01 14 19,99 250
ETP-0748-1000 M18, M20 3/4 EPDM 19 14,27 25,4 100
ETP-0750-0562 M18, M20 3/5 EPDM 19 14,3 14,27 250
ETP-0787-1000 M20, 3/4" EPDM 19,99 15,88 25,4 100
ETP-0797-0984 EPDM 20,24 13,67 24,99 200
ETP-0800-0625 EPDM 20,32 15,88 15,88 100
ETP-0812-1000 EPDM 20,62 15,88 25,4 100
ETP-0827-1000 EPDM 21,01 16 25,4 100
ETP-0925-0750 M22, 7/8" EPDM 23,5 19,05 19,05 100
ETP-0925-1000 M22, 7/8" EPDM 23,5 19,05 25,4 100
ETP-0938-1000 M22, 7/8" EPDM 23,83 18,26 25,4 100
ETP-0945-0750 M22, 7/8" EPDM 24 19,2 19,05 100
ETP-0945-1000 M22, 7/8" EPDM 24 19,2 25,4 100
ETP-0946-1181 M22, 7/8" EPDM 24,03 18,01 30 100
ETP-0990-0795 EPDM 25,15 22,4 20,19 100
ETP-0990-0885 EPDM 25,15 19,99 22,48 100
ETP-1000-1000 M22, M24, 1" EPDM 25,4 19,84 25,4 100
ETP-1004-0472 M22, M24, 1" EPDM 25,5 22 12 100
ETP-1024-0795 EPDM 26,01 22,35 20,19 100
ETP-1024-1000 EPDM 26,01 19,99 25,4 100
ETP-1062-0984 EPDM 26,97 22 24,99 100
ETP-1063-1000 M27 EPDM 27 23,01 25,4 100
ETP-1100-1000 M30, 1 1/4" EPDM 27,94 23,83 25,4 100
ETP-1102-2000 M30, 1 1/4" EPDM 27,99 19,05 50,8 100
ETP-1181-1000 EPDM 30 27,79 25,4 100
ETP-1220-1181 EPDM 30,99 24,99 30 100
ETP-1250-1000 M33, 1 1/4" EPDM 31,75 26,19 25,4 100
ETP-1313-1000 M33, 1 1/4", 3/8" EPDM 33,35 27 25,4 100
ETP-1338-1000 EPDM 33,99 27 25,4 100
ETP-1438-1000 M36, 1 3/8" EPDM 36,53 30,18 25,4 100
ETP-1456-1000 EPDM 36,98 30,18 25,4 100
ETP-1496-1378 EPDM 38 30,99 35 50
ETP-1531-1000 M39, 1 1/2" EPDM 38,89 31,75 25,4 50
ETP-1614-1000 EPDM 41 33,02 25,4 50
ETP-1615-1378 EPDM 41,02 34,01 35 50
ETP-1625-1000 M39, M42, 1 1/2" EPDM 41,28 33,35 25,4 50
ETP-1688-1000 M42 EPDM 42,88 35,71 25,4 50
ETP-1693-1000 M42, MM45 EPDM 43 35,99 25,4 50
ETP-1732-1575 EPDM 43,99 36 40,01 50
ETP-1750-1000 M48 EPDM 44,45 37,31 25,4 50
ETP-1772-1000 EPDM 45,01 37,01 25,4 50
ETP-1813-1000 EPDM 46,05 38,1 25,4 50
ETP-1929-1575 EPDM 49 41 40,01 50
ETP-1969-1000 EPDM 50,01 41,28 25,4 50
ETP-2063-1000 M56 EPDM 52,4 44,45 25,4 25
ETP-2086-1000 EPDM 52,98 44,96 25,4 25
ETP-2165-1575 EPDM 54,99 46,99 40,01 25
ETP-2203-1000 M56 EPDM 55,96 47,63 25,4 25
ETP-2362-1772 EPDM 59,99 50 45,01 25
ETP-2469-1000 M64 EPDM 62,71 50,01 25,4 25
ETP-2480-1000 M50, M52 EPDM 62,99 50,01 25,4 25
ETP-2500-1000 M64 EPDM 63,5 53,98 25,4 25
ETP-2688-1000 EPDM 68,28 57,94 25,4 25
ETP-2953-1375 EPDM 75,01 61,93 34,93 25
ETP-3500-1500 EPDM 88,9 76,2 38,1 10
ETP-3543-1535 EPDM 89,99 75,01 38,99 10
ETP-4000-1500 EPDM 101,6 82,55 38,1 10
ETP-4055-1535 EPDM 103 82,98 38,99 10
ETP-5000-2000 EPDM 127 88,9 50,8 5
