EPDM Flat Caps – EFC

EPDM Flat Caps  , EPDM ( EFC-Serie)    ( max.177°C)

  • Reduces Creepage in Applications Where Temperatures Change Rapidly
  • Flexible Enough to Conform to Irregular Geometry
  • Flat Top Aids Insertion and Minimizes any Air Trap



Product Description:

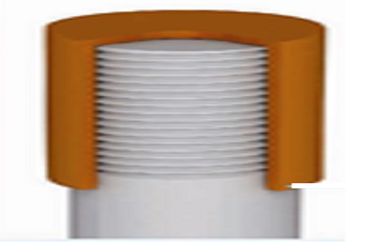

Used as a cap over threaded studs, dowels, and protrusions. Our EPDM  Flat  Cap ( EFC) product line is an alternative to our EPDM Cap (EC) product line for capping applications. Their versatile nature allows them to fit over extrusions, threaded studs, PEMS and dowels. Our high temperature Silicone is specially formulated to ensure reusability and economy during masking.

Helpful Hints:

  • Alternate to many EPDM Cap (EC) sizes.
  • When sizing parts as a cap, the ID of the cap should be 2 – 5% smaller than the stud diameter.

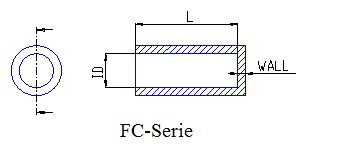

ZG-FC-Kappen



All Dimension in mm

Get a sample or offer

Part No. Metric ID Length Wall PCS/BAG
EFC-0070-1000 1,78 25,4 1,52 1000
EFC-0100-1000 M3 2,54 25,4 1,52 1000
EFC-0100-1120 M3 2,54 28,45 1,52 1000
EFC-0120-0400 3,05 10,16 1,52 1000
EFC-0120-1000 3,05 25,4 1,52 1000
EFC-0145-1120 3,68 28,45 1,52 1000
EFC-0148-1000 M4 3,76 25,4 1,52 1000
EFC-0172-0800 M5 4,37 20,32 1,52 1000
EFC-0175-1000 4,45 25,4 1,52 1000
EFC-0185-1120 4,7 28,45 1,52 1000
EFC-0220-1120 5,59 28,45 1,52 1000
EFC-0220-1650 5,59 41,91 1,52 1000
EFC-0223-1500 M6 5,66 38,1 1,52 1000
EFC-0234-1500 1/4" 5,94 38,1 1,52 1000
EFC-0295-0250 M8-5/16" 7,49 6,35 1,52 1000
EFC-0295-1500 M8-5/16" 7,49 38,1 1,52 500
EFC-0300-1120 7,62 28,45 1,52 500
EFC-0300-1650 7,62 41,91 1,52 500
EFC-0355-1500 9,02 38,1 1,52 500
EFC-0375-1120 M10 9,53 28,45 1,52 500
EFC-0375-1500 M10 9,53 38,1 1,52 500
EFC-0393-0728 9,98 18,49 1,52 500
EFC-0415-1500 10,54 38,1 1,52 500
EFC-0437-1000 11,1 25,4 1,52 500
EFC-0440-0728 11,18 18,49 1,52 500
EFC-0456-1120 M12 11,58 28,45 1,52 500
EFC-0456-1500 M12 11,58 38,1 1,52 500
EFC-0480-1500 1/2" 12,19 38,1 1,52 500
EFC-0535-1500 M14 13,59 38,1 1,52 500
EFC-0562-1500 M16 14,27 38,1 1,52 500
EFC-0590-0708 14,99 17,98 1,52 500
EFC-0600-1500 15,24 38,1 1,52 250
EFC-0640-0900 16,26 22,86 1,52 250
EFC-0640-2000 16,26 50,8 1,52 250
EFC-0665-0732 16,89 18,59 1,52 250
EFC-0687-0330 M18 17,45 8,38 1,52 250
EFC-0722-4555 18,34 115,7 1,52 100
EFC-0728-0452 3/4" 18,49 11,48 1,52 250
EFC-0730-1500 3/4" 18,54 38,1 1,52 250
EFC-0730-4000 3/4" 18,54 101,6 1,52 100
EFC-0736-0728 M20 18,69 18,49 1,52 250
EFC-0811-0728 M22-7/8" 20,6 18,49 1,52 250
EFC-0855-1500 21,72 38,1 1,52 250
EFC-0921-0728 23,39 18,49 1,52 250
EFC-0970-4000 M25-1" 24,64 101,6 1,52 100
EFC-0980-1500 24,89 38,1 1,52 250
EFC-1000-0650 M27 25,4 16,51 1,52 250
EFC-1220-0670 30,99 17,02 1,52 250
EFC-1291-0905 32,79 22,99 1,52 100
EFC-1555-1102 39,5 27,99 1,52 100
EFC-1575-0670 40,01 17,02 1,52 100
EFC-1649-1102 41,88 27,99 1,52 100
EFC-1772-0670 45,01 17,02 1,52 100
EFC-1850-1102 46,99 27,99 1,52 100
EFC-1957-1515 49,71 38,48 1,52 100
EFC-2248-1023 57,1 25,98 1,52 100
EFC-2885-1000 73,28 25,4 1,52 50
