Products

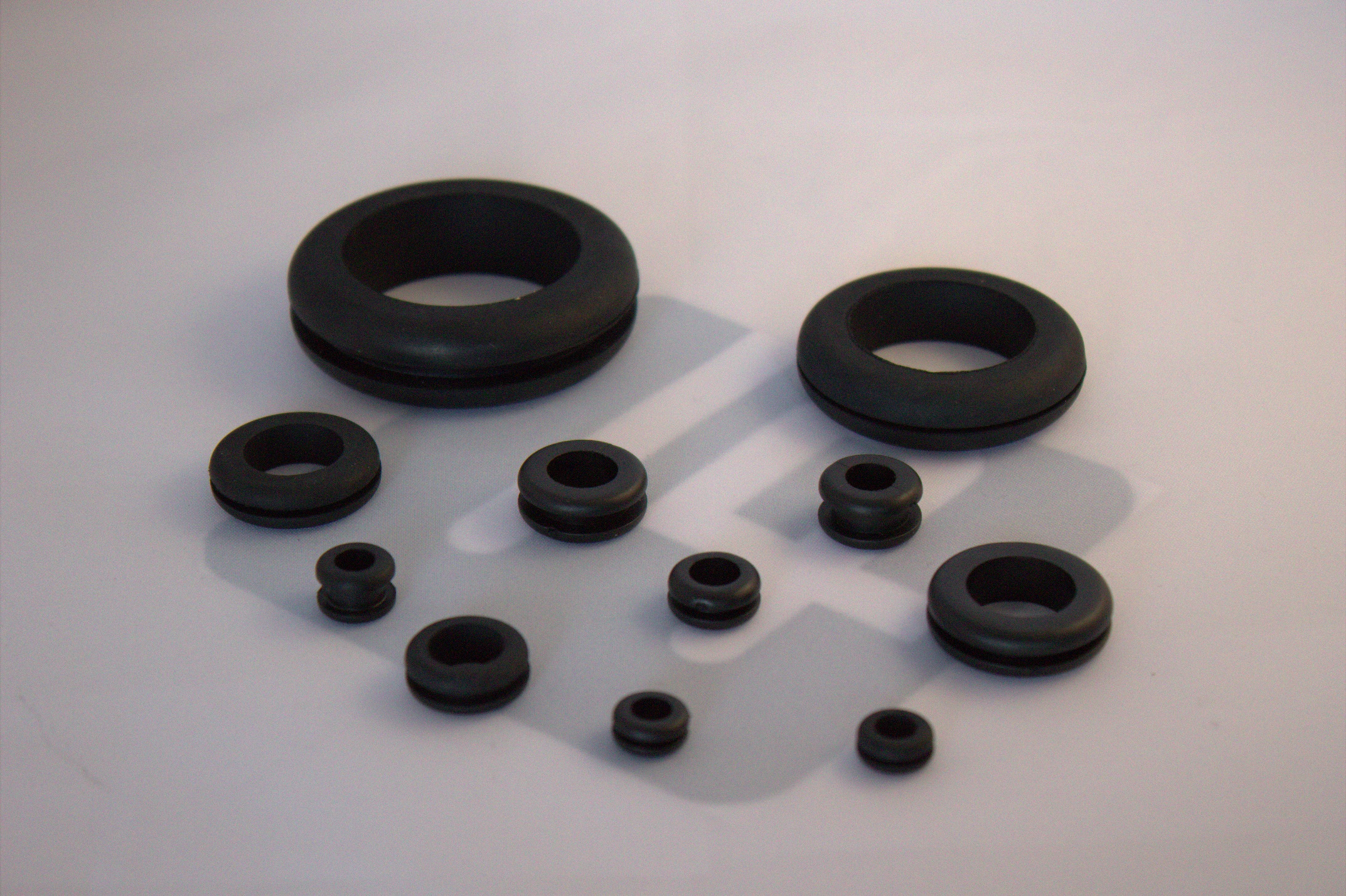

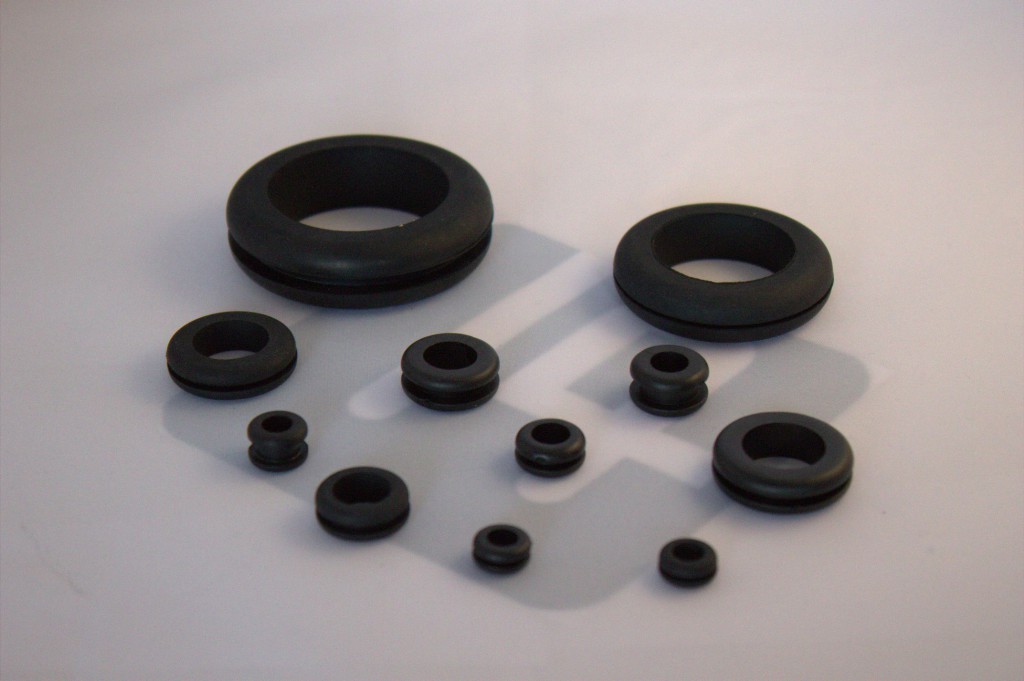

EPDM Grommets

These grommets protect wires and cables, which are guided by plates

EPDM – heat-resistant materials for use in extreme temperatures -40 ˚ C to 125 ˚ C

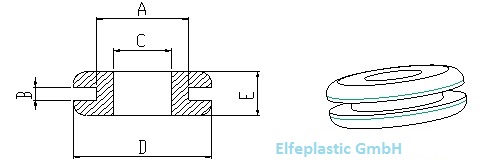

ZG-kabeldurch



All Dimension in mm

Get a sample or offer

Part No. A (mm) B (mm) C (mm) D (mm) E (mm) Material
GS-5x1x2 5 1 2 8 4 EPDM
GS-5x1.5x2 5 1,5 2 8 4,5 EPDM
GS-5x2x2 5 2 2 8 5 EPDM
GS-5x1x3 5 1 3 8 4 EPDM
GS-5x1.5x3 5 1,5 3 8 4,5 EPDM
GS-5x2x3 5 2 3 8 5 EPDM
GS-7x1.5x3 7 1,5 3 10 6 EPDM
GS-7x1.5x4.8 7 1,5 4,8 11,1 6,4 EPDM
GS-8x1x4 8 1 4 11 8 EPDM
GS-8x2x4 8 2 4 11 6 EPDM
GS-8x3x4 8 3 4 11 7 EPDM
GS-8x1x6 8 1 6 11 5 EPDM
GS-8x2x6 8 2 6 11 6 EPDM
GS-9x1x6 9 1 6 12 5 EPDM
GS-9x1.5x6 9 1,5 6 12 5,5 EPDM
GS-9x2x6 9 2 6 12 6 EPDM
GS-9x3x6 9 3 6 12 7 EPDM
GS-9x4x6 9 4 6 12 8 EPDM
GS-10x1x6 10 1 6 14 6 EPDM
GS-10x1.5x6 10 1,5 6 14 6,5 EPDM
GS-10x2x6 10 2 6 14 7 EPDM
GS-10x3x6 10 3 6 14 8 EPDM
GS-10x1x8 10 1 8 14 6 EPDM
GS-10x1.5x8 10 1,5 8 14 6,5 EPDM
GS-10x2x8 10 2 8 14 7 EPDM
GS-10x3x8 10 3 8 14 8 EPDM
GS-11x1x8 11 1 8 16 6 EPDM
GS-11x2x8 11 2 8 16 7 EPDM
GS-11x3x8 11 3 8 16 8 EPDM
GS-11x4x8 11 4 8 16 9 EPDM
GS-12x1x8 12 1 8 16 6 EPDM
GS-12x2x8 12 2 8 16 7 EPDM
GS-12x3x8 12 3 8 16 8 EPDM
GS-12x4x8 12 4 8 16 9 EPDM
GS-12x1x10 12 1 10 16 6 EPDM
GS-12x1.5x10 12 1,5 10 16 6,5 EPDM
GS-12x2x10 12 2 10 16 7 EPDM
GS-12x3x10 12 3 10 16 8 EPDM
GS-14x1x11 14 1 11 18 6 EPDM
GS-14x2x11 14 2 11 18 7 EPDM
GS-14x3x11 14 3 11 18 8 EPDM
GS-15x1x11 15 1 11 20 6 EPDM
GS-15x2x11 15 2 11 20 7 EPDM
GS-15x3x11 15 3 11 20 8 EPDM
GS-15x4x11 15 4 11 20 9 EPDM
GS-18x1x12 18 1 12 22 6 EPDM
GS-18x2x12 18 2 12 22 7 EPDM
GS-18x3x12 18 3 12 22 8 EPDM
GS-18x4x12 18 4 12 22 9 EPDM
GS-22x1x16 22 1 16 27 7 EPDM
GS-22x1.5x16 22 1,5 16 27 7,5 EPDM
GS-22x2x16 22 2 16 27 8 EPDM
GS-22x3x16 22 3 16 27 9 EPDM
GS-22x4x16 22 4 16 27 10 EPDM
GS-27x1x21 27 1 21 34 9 EPDM
GS-27x2x21 27 2 21 34 10 EPDM
GS-27x3x21 27 3 21 34 11 EPDM
GS-27x4x21 27 4 21 34 12 EPDM
GS-40x1x31 40 1 31 48 12 EPDM
GS-40x2x31 40 2 31 48 13 EPDM
GS-40x3x31 40 3 31 48 14 EPDM
GS-40x4x31 40 4 31 48 15 EPDM
GS-52x1x41 52 1 41 60 13 EPDM
GS-52x2x41 52 2 41 60 14 EPDM
GS-52x3x41 52 3 41 60 15 EPDM
GS-52x4x41 52 4 41 60 16 EPDM
